100 x 50 x 40mm N35 Grade Nickel Neodymium Magnet

Material:Sintered Neodymium Iron Boron Grade:N35. Tolerance:Standard +/-0.1mm. Magnetized through the 100x50 side. surfaces Nickel-Copper-Nickel triple layer coating for superior durability

Size

100x50x40mm or customized

Grade

N35

Coating

Nickel

Sample

Available

MOQ

50pcs

Magnetization side

100x50mm side

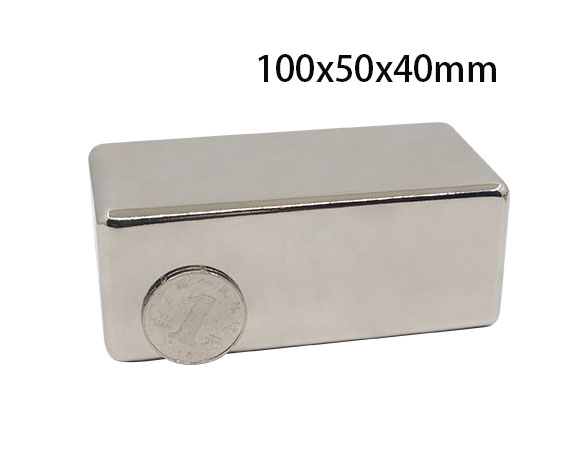

100x50x40mm bar block magnets:


Size

100x50x40mm magnet

Grade

N35

Weight

1.5kg/pcs

Part Number

JT20201020

Brand Name

JinTong

Color

nickel sliver

Certification

SGS, ROSH, MSDS, ISO



bar block magnetsbar block magnets for sale

N35 bar block magnetsbar block magnets neodymium


Different coating for your selection


CoatingSurface ColourCoating ThicknessApplication Salt Spray Test
ZnBlue White
5~10 MicronsWith high anti-corrosion ability>24 Hour
NiCuNiGlowing Silver15~30 MicronsApplicable to a more harsh environment>48 Hour
EpoxyBlack10~30 Microns
Toy, insulation machinery>300 Hour
GoldGolden5~10 MicronsDecorative, healthy-care>24 Hour

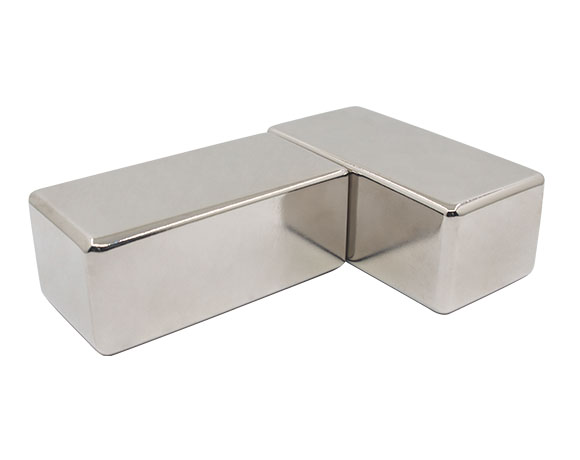

strong bar block magnets


Magnetization side:

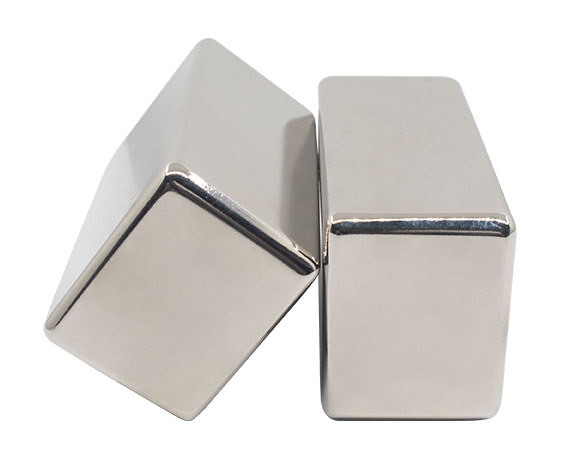

big bar block magnets



Application of bar block magnets


Acoustic field: the speaker, receiver, microphone, alarm, stage audio, car audio and so on.

Electronics: permanent magnetic actuator vacuum circuit breakers, magnetic relays, meter, meter, sound meter, a reed switch, sensors.

Electrical field: VCM, CD / DVD-ROM, generators, motors, servo motors, micro-motors, motors, vibration motors.

Machinery and equipment: magnetic separation, magnetic crane, magnetic machinery.

Healthcare: MRI scanners, medical equipment, magnetic health products and so on.

Other industries: magnetized Wax, pipe descaling, magnetic fixture, automatic mahjong machine, magnetic locks, doors and windows magnetic, magnetic luggage, leather magnetic toys, magnetic tools, gifts and packaging.

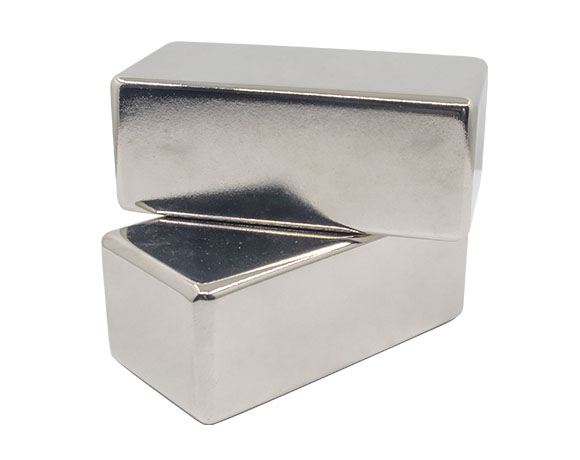

large bar block magnets

Some Daily Life Application Show:

100x50x40mm bar block magnets


Magnets Package:

1. Disc Magnet is a special goods for delivery, and they have to make special packing before transportation.

2. Antimagnetic Packaging / Neutral Packing / Custom-make Welcome

block magnets

Warning :

1. Keep away from pacemakers.

2. Powerful magnets may hurt your fingers.

3. Do not touch for children, parental supervision required.

4. All magnets may be chip and shatter, but if it is used correctly, it can last a lifetime.

5. If the magnet is damaged, please dispose of completely. Shards are still magnetized.

6. If magnet is swallowed, it will be very dangerous.
