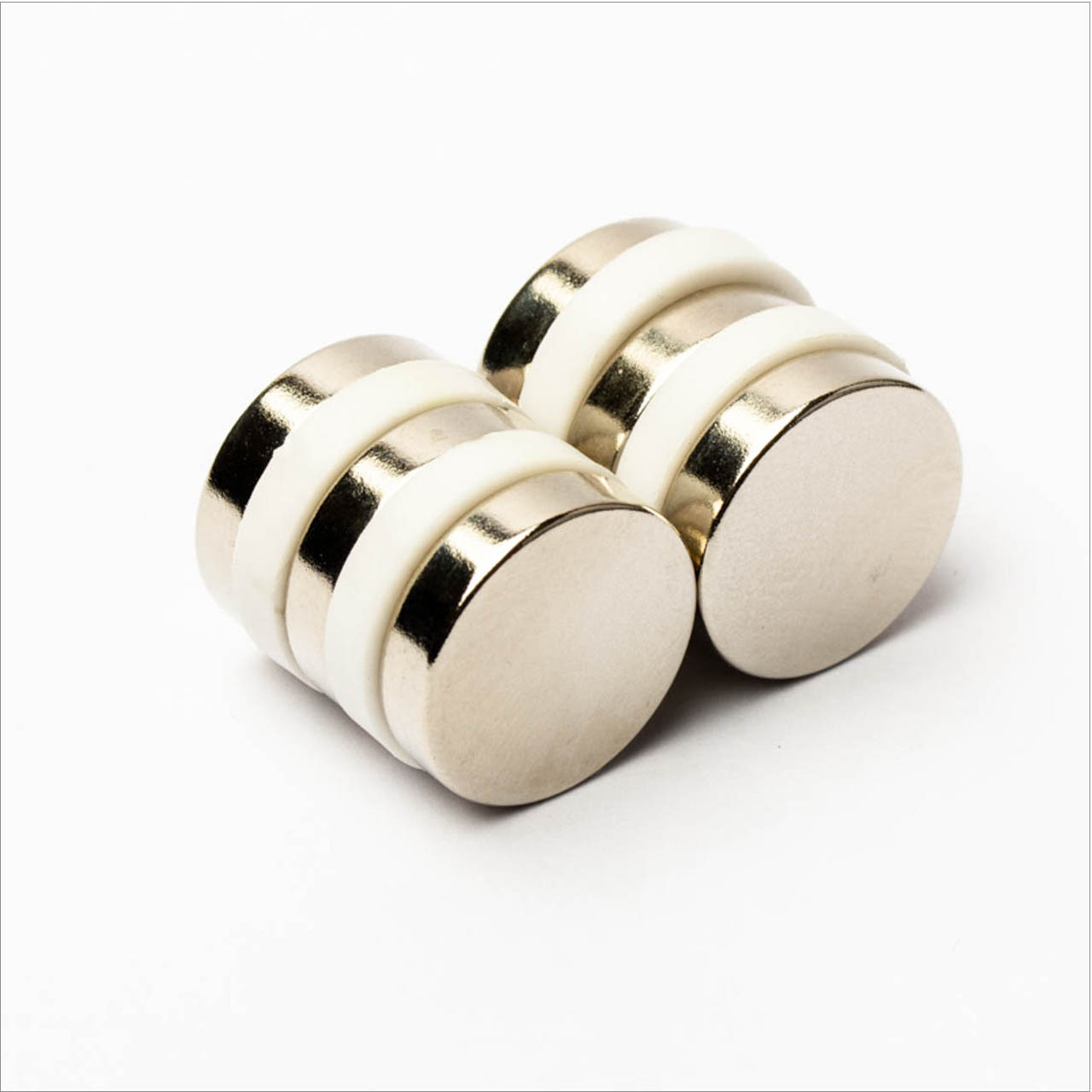

Material:Sintered Neodymium Iron Boron Grade:N38, with an extremely strong pulling force of 12kgf per magnet. Tolerance:Standard +/-0.05mm, Min.+/-0.03mm Magnetized through the 10mm thickness Nickel-Copper-Nickel triple layer coating for superior durability
Sintered Neodymium Iron Boron
N38 or customized
Nickel-Copper-Nickel or customized
By thickness
+/-0.05mm, Min.+/-0.03mm

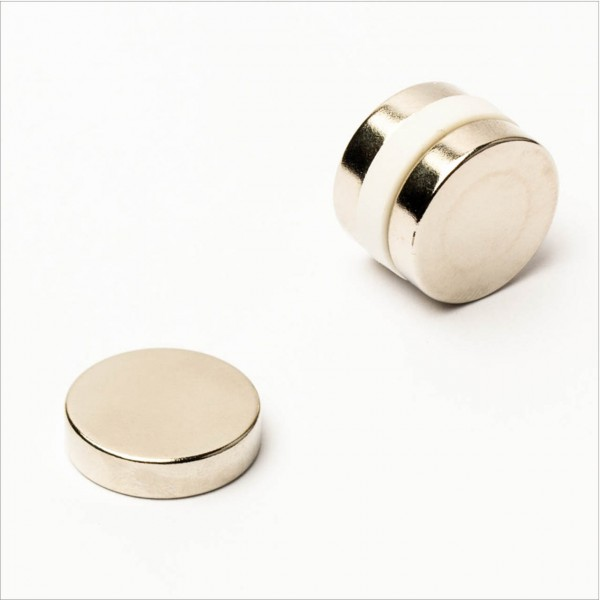

25x10mm:
Size | 25x10mm |
Grade | N38 |
Weight | 0.037kg/pcs |
Part Number | JT1912122 |
Brand Name | JinTong |
Color | Nickel Sliver |
Certification | SGS, ROSH, MSDS, ISO |

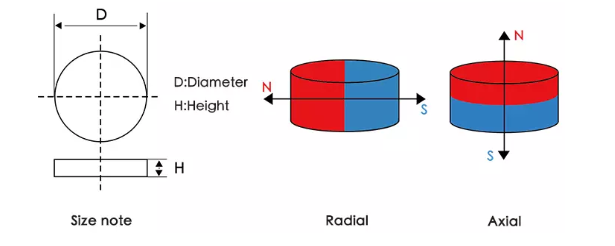

Magnetization side:

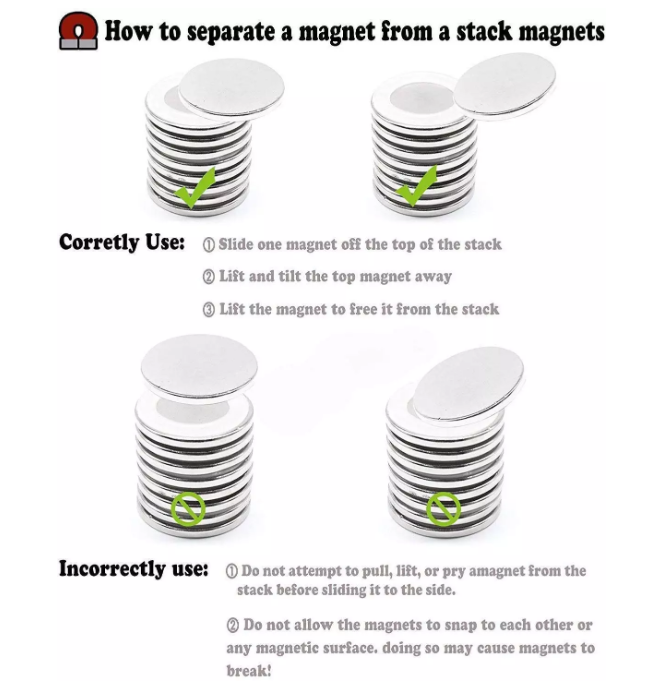

WARNING!!!
Strong magnets should Keep away from Ironware and some easily magnetized iron products, such as monitors, bank cards, computers, televisions, mobile phones and other.
These magnets are very powerful which should be handled with great care. Without parents supervised do not allow children to playing magnets as they could get injured. Especially pay attention to the small magnets, please place in somewhere children can't reach place.
Acoustic field: the speaker, receiver, microphone, alarm, stage audio, car audio and so on.
Electronics: permanent magnetic actuator vacuum circuit breakers, magnetic relays, meter, sound meter, a reed switch, sensors.
Electrical field: VCM, CD / DVD-ROM, generators, motors, servo motors, micro-motors,motors, vibration motors.
Machinery and equipment: magnetic separation, magnetic crane, magnetic machinery.
Healthcare: MRI scanners, medical equipment, magnetic health products and so on.
Wedding corsage badges, etc., can be replaced with a magnet attracts every other clothes pins, so as not to damage the dress.
For the overlying metal drawing board for fixing the drawing paper. Magnetic blackboard whiteboard fixed file drawings.
Advertising magnets available to replace the original fixtures, at any time convenient to replace the ad content.
Models piling, you can use small magnets to connect two widgets.
Studio, bulk magnet can be used to adsorb screws and other parts, even wrenches and other tools
